Model No ::

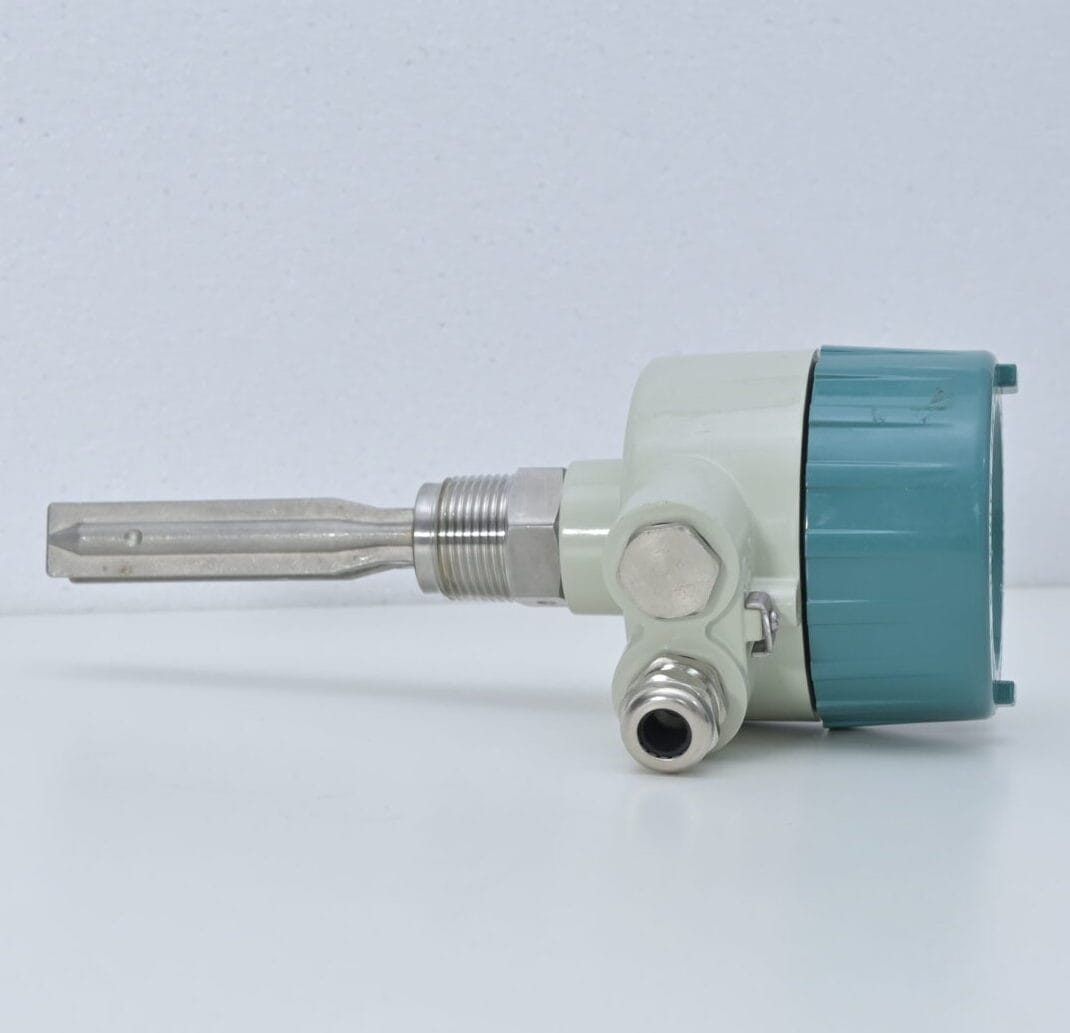

KP-VTF
Experience Reliable Level Detection
Introducing the Vibrating Tuning Fork Level Switch, a robust solution designed for precise level measurement in various applications. Whether you are monitoring liquids or solids, this device ensures accurate and reliable performance, making it an invaluable tool in industries ranging from manufacturing to wastewater treatment.
working principle
The operating principle behind the Vibrating Tuning Fork Level Switch is simple yet effective. This device utilizes the concept of acoustic resonance to detect the presence or absence of a material. The tuning fork vibrates at a specific frequency, and when the fork comes into contact with the material being measured, its vibration frequency changes. This alteration is detected by the integrated digital display, which provides immediate and clear feedback on the level status, guaranteeing efficient monitoring.
Product Specification ::
Brotek Smart Vibrating tuning fork Level switch available with inbuilt programming display to set switching point against Piezoelectric crystal frequency, fork body is excited by a piezoelectric crystal, so that the fork body is in a resonance state. When the fork contacts the material, the resonance frequency will change significantly. The internal electronic unit detects the frequency of the fork body and after processing, converts it into a relay or a PNP switch output.
Vibrating tuning fork level switch technical detail
Power supply voltage : 12 ~ 30VDC / 110 ~ 220VAC (only for relay output type)
Output :Relay DPDT 8A 250VAC / PNP output: 50mA, 24V / Frequency output: 0 ~ 2000Hz (24V)
Working temperature of medium :Short fork body: -30 ? 150 ?, Long fork body: -30 ~ 250 ?
Density range :Liquid ≥600 kg / m3, solid powder: ≥100 kg / m3
Liquid viscosity : 0.2 ? 10000cp
Switching delay : adjustable from 0 to 30 seconds
Switch mode : upper or lower limit alarm (user set)
Hysteresis (water) : ± 1mm
Maximum operating pressure : ≤1Mpa
Connection method : Thread: 3/4 “NPT /Thread: G1 / 2/Flange (user specified)/
Sanitary fittings: Accessories: 2 ”(51mm) Tri-Clamp connector/ 1” BSPP (G) O-ring seal material
Enclosure Material : die-cast aluminum alloy ( IP 66) ( EX d II CT6)
Fork body material : 316 stainless steel / 316 stainless steel, Teflon surface
Fork body vibration frequency : Short fork body: 1400 ± 50HZ / Long fork body: 330 ± 50HZ
Environmental vibration level : acceleration is not greater than 1g
Product Features ::
BROTEK vibrating tuning fork level switch is really smart because its has bellow future,
-Real-time display of fork frequency value, easy to find faults such as fork wear early
-Supports both long and short tuning fork shapes for a wide range of applications.
-Not affected by flow, foam, turbulence, floating foam, vibration, solid content, hanging materials, liquid characteristics and media changes.
-No need for on-site calibration, convenient installation.
-Self-diagnostic function : check and display other diagnostic information such as frequency, temperature, voltage and current.
-Easy to set: Sensitivity and alarm delay can be easily set by pressing the button
-The “quick dripping” tuning fork shape design of the short fork body makes the system respond faster and is suitable for viscous liquids.
Range ::
Smart tuning fork switch is equipped with a variety of durable stainless steel tuning fork forks, which can detect the level of the storage tank or pipeline. It is suitable for various liquids, powders, granular solids, and can be installed in pipelines or storage tanks through threads and flanges. It can be installed on the food industry facility through sanitary connections.
Key Features and Advantages
One of the standout features of the Vibrating Tuning Fork Level Switch is its digital display, offering real-time feedback that enhances your monitoring capabilities. Its compatibility with various substances, including aggressive chemicals and viscous materials, ensures versatility in industrial applications. Additionally, the compact design allows for easy installation in tight spaces.
Thanks to its reliable operation, the Vibrating Tuning Fork Level Switch minimizes the risk of overflow or dry run conditions, aiding in maintaining operational integrity. With a high level of accuracy, this device not only improves safety but also contributes to better efficiency and productivity in your processes.
In conclusion, the Vibrating Tuning Fork Level Switch with digital display emulates a perfect blend of innovation and reliability, providing a sophisticated solution for level measurement. Experience unparalleled performance and peace of mind knowing that you have a cutting-edge tool to help you maintain optimal levels in your operations.
