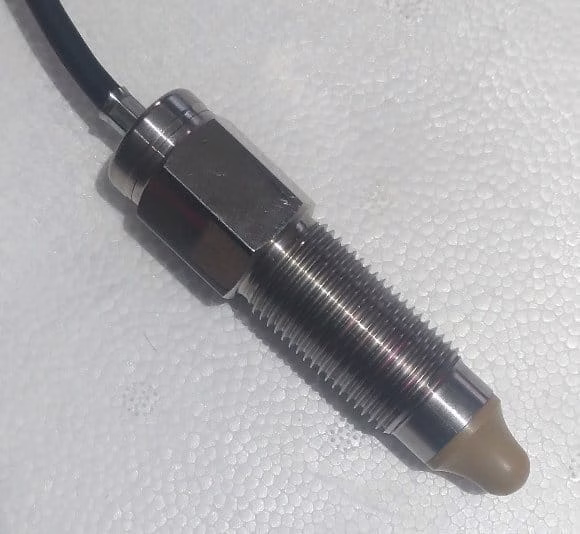

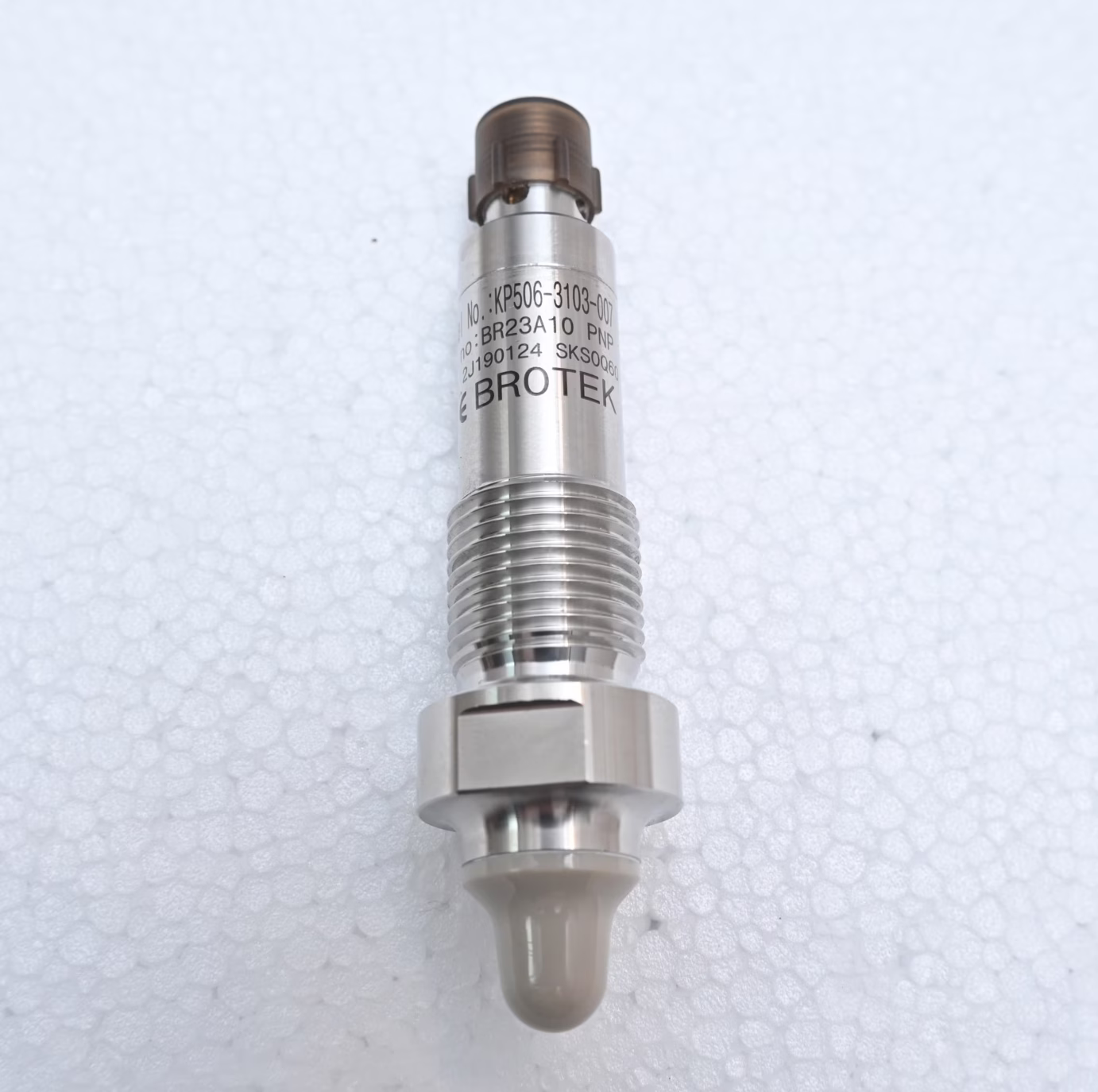

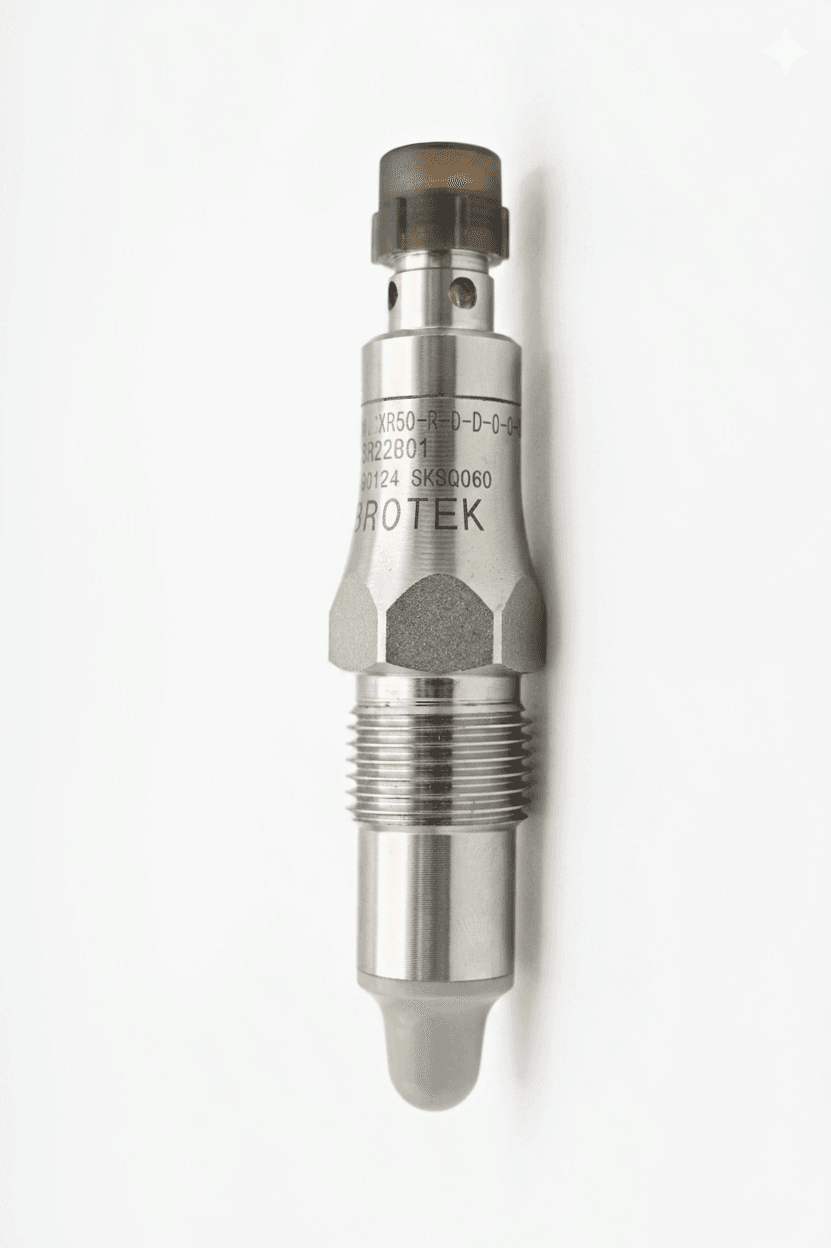

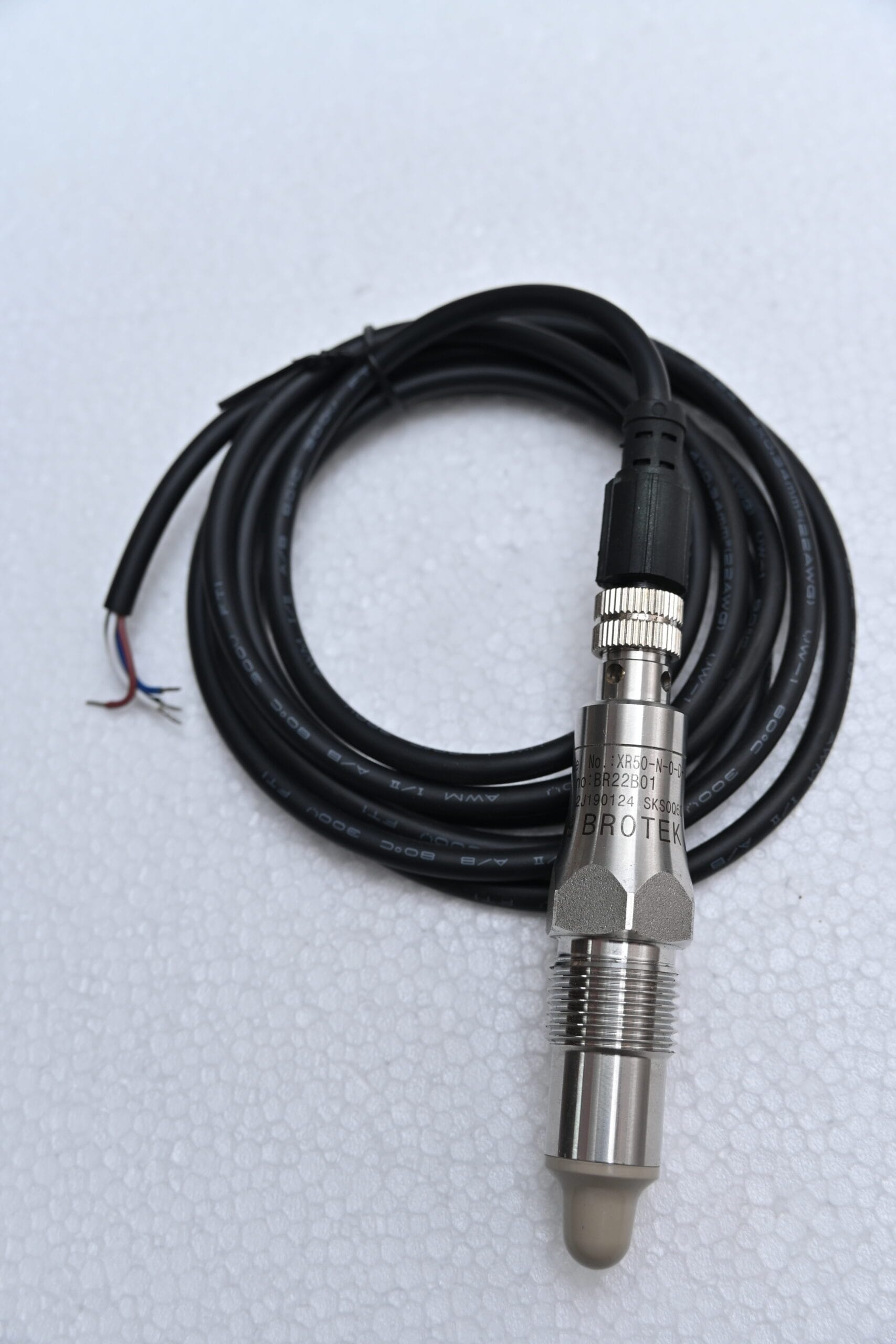

RF admittance microwave level switch with frequency sweep technology from BROTEK India has all in one, universal, also its not effect by foam condensate and residue, its produced using microwave measuring principle possible to detect a conductive and non conductive medium from: liquid, solid and solid powder. also its measuring point has no dead end and is hygienic so level switch is suitable for CIP (Clean-in-Place), WIP (Wash-in-Place) and SIP (Sterilization-in-Place), available with different process connection as per industries requirement, and different temperature version for set up to 200 ºC.
Technical detail : Frequency Sweep Level Switch
RF Admittance Microwave Intelligent level switch
Wetted part : PEEK/SS316L
Response time : 0.3 second
Switching delay : 0 ~ 30 (adjustable)
Output : NPN/PNP/Relay
Power supply : 12 to 33 VDC ideal : 24 VDC
Current rating : 150 mA
Protection: IP 68 (PEEK part), IP 66 (Cable outlet)
Pressure Limit : 10 bar
Electrical connection : M12*4 pin male
Temperature limit : 1) -40 to 85 ºC
2) -40 to 115 ºC
3) -40 to 150 ºC
4) -40 to 200 ºC
Process connection : 1/2″ Thread
Material : Enclosure and Connection : S.S. 316L
Weight : 0.3 kg
Key Features
- High Precision Measurement: Utilizes microwave technology for precise level measurement.
- Wide Application Range: Suitable for liquids, slurries, and solids.
- Robust Design: Built to withstand harsh industrial environments.
- User-Friendly Interface: Easy to install and operate.
Applications
- Chemical Processing: Monitoring levels of corrosive materials.
- Water Treatment: Ensuring optimal levels in tanks and reservoirs.
- Food and Beverage: Maintaining product levels in processing systems.
