Description

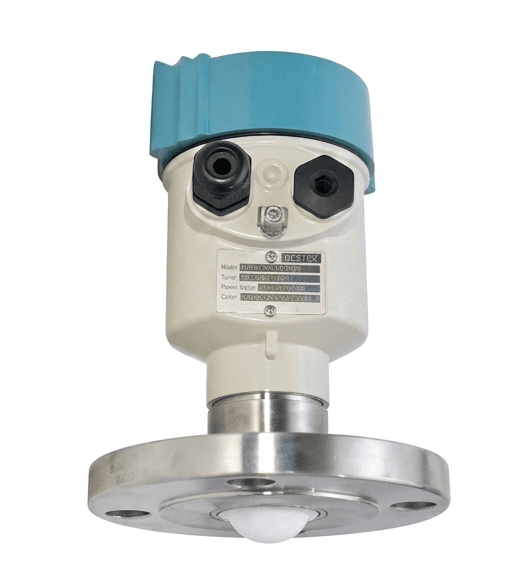

@vuk Series 80 Ghz radar Level transmitter 120 meter operating at 76-81 GHz, and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications with HART/ RS485 output ,
Higher operating frequency and shorter wavelength make it ideal for solid applications. Including those with extreme dust and high temperature UP to + 800℃.
The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
The main benefits of using 78 GHz over devices using lower frequency are:
* Based on the self-developed CMOS millimeter wave RF chip, a more compact RF
architecture, a higher signal-to-noise ratio, and a smaller blind zone are realized.
* 5GHz working bandwidth means higher measurement resolution and accuracy.
*3°antenna beam angle, so the interference in the environment has less impact on the
instrument.
* Shorter wavelength yields good reflection properties on sloped solids.
* Support remote debugging and remote upgrading to reduce the cost of field personnel.
The versatility of the 80 GHz Radar Level Transmitter 120 meter range makes it suitable for a wide range of applications. including but not limited to chemical processing, water treatment, food and beverage, and power generation. Its ability to accurately measure various materials – whether they are solids, liquids, or slurries – means that it seamlessly integrates into different systems, enhancing overall efficiency.
80 GHz FMCW Radar Level Transmitter: Unmatched Precision in Measurement
