Description
@vuk Series 26 Ghz radar Level meter and Transmitter adopted 26G high frequency radar sensor, the maximum
measurement range can reach up to 80 meters. Antenna is optimize further processing,
the new fast microprocessors have higher speed and efficiency can be done signal analysis,
the instrumentation can be use for reactor, solid silo and very complex measurement
environment.

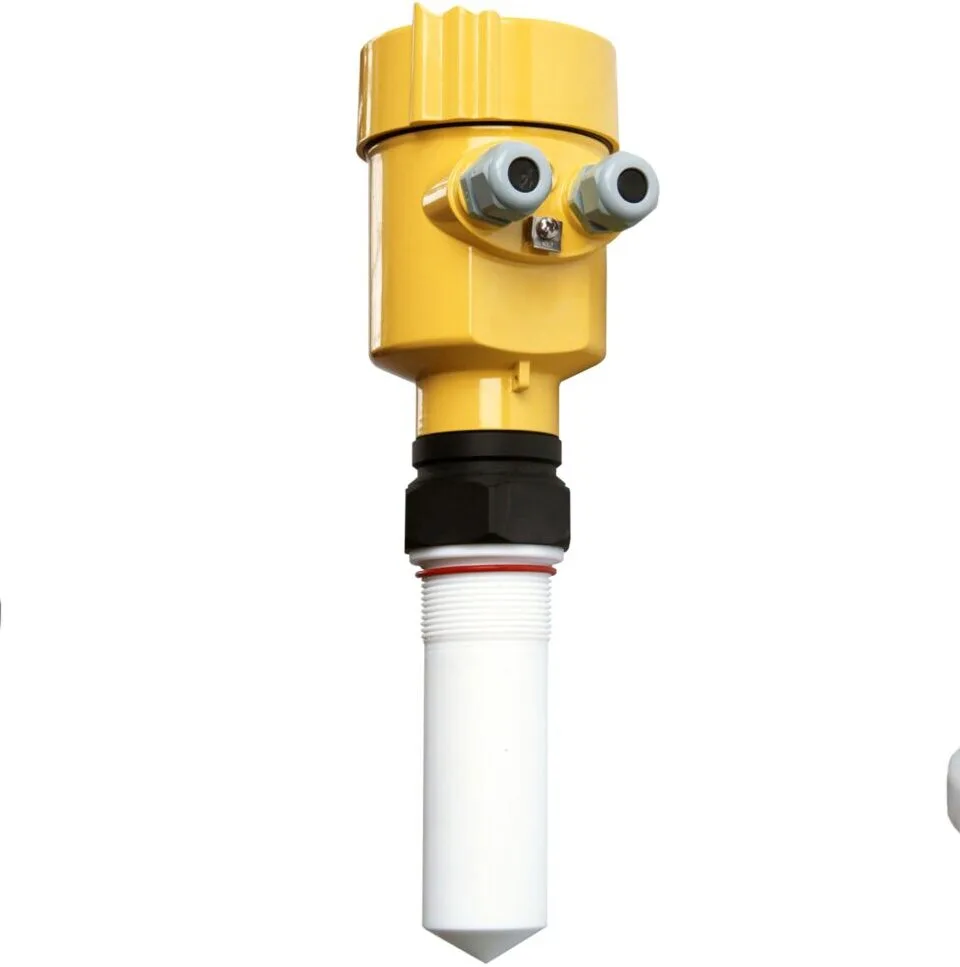

Concurrently Corrosive liquid Radar Level meter 26 Ghz lenses and antenna specially made from PVDF, PTFE and special material that withstand with high corrosive liquid at high temperature.
working principle : 26 GHz Radar Level meter
especially, The 26 GHz Radar Level Transmitter and gauge with pulse technology operates on the principle of sending microwave pulses towards the surface of the solid or liquid material being measure. These pulses travel at the speed of light and reflect off the surface of the solid back to the transmitter. The device precisely calculates the time it takes for the pulse to return, which allows it to accurately determine the distance to the material’s surface. This technology is not only reliable but also immune to environmental factors such as dust, temperature fluctuations, and pressure changes, ensuring consistent performance in various conditions.
